R1 Series

Sales, Service & Replacement


Nano R6 VDR Series


Features:
  Rated for 20 to 2000 SCFM
Energy Effecient Cycling Dryer
Verified Performance: ISO 7183:2007
Two Year Warranty




Drawings & Datasheet:

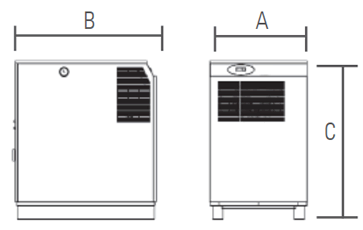

Dimensions
Specifications
AKG HR Series




How to Order:

Call: 1-888-226-8522
Email: Sales



Typical Applications:

Rotary Screw Compressors
Piston Compressors
Centrifugal Air Compressors
Compressed Air Cooling


Ratings:

Operating Pressure: 0 to 232 PSIG
Ambient Temperature: Up to 122 F

Maximum Inlet Temperature: 158 f



Benefits:

Clean, Dry Compressed Air

Low Pressure Drop


Dryer

Model

 Inlet & Outlet Rated Flow Absorbed Power Dimensions (Inches) Approx. Weight Power Supply
Air Cooled Flg SCFM Nm3/H kW A B C X LBS 460/60/3
VDR 2600A 6" 2600 4417 9.9 62.2 90.4 58 5 1940 Yes
VDR 3105A 6" 3150 5352 10.5 62.2 90.4 58 5 2061 Yes
VDR 3700A 6" 3700 6286 11.3 62.2 90.4 58 5 2172 Yes
VDR 4200A 6" 4200 7136 14.2 62.2 90.4 58 5 2183 Yes
VDR 5050A 6" 5050 8580 19.1 62.2 90.4 58 5 2183 Yes
VDR 6350A 6" 6350 10789 23.9 62.2 90.4 98.5 6 3726 Yes
VDR 8450A 6" 8450 14357 28.1 62.2 90.4 98.5 6 4012 Yes
Water Cooled
VDR 2600W 6" 2600 4417 6.1 62.2 67.9 58 5 1764 Yes
VDR 3105W 6" 3150 5352 6.6 62.2 67.9 58 5 1797 Yes
VDR 3700W 6" 3700 6286 7.5 62.2 67.9 58 5 1885 Yes
VDR 4200W 6" 4200 7136 8.3 62.2 67.9 58 5 1907 Yes
VDR 5050W 6" 5050 8580 12.8 62.2 67.9 58 5 1918 Yes
VDR 6350W 6" 6350 10789 14.4 62.2 68.3 98.5 6 3109 Yes
VDR 8450W 6" 6450 14357 19.7 62.2 68.3 98.5 6 3395 Yes

Quotes, Sales & Ordering Information: Refrigerated Air Dryers, please contact us: 1-888-226-8522
