Nano Desiccant Compressed Air Dryers

For Drying Compressed Air



With our high performance desiccant air dryers, achieving clean and dry compressed air for your process is a breeze.

Unlike compressed air system refrigerated dryers, Nano desiccant dryers remove moisture from your lines by passing air through a mass of specialized desiccant within the unit’s main chamber.

With fewer moving parts than other dryers, Nano's desiccant-based models provide a low-maintenance solution for high-demand compressed air applications. Our dryers operate at consistently low pressure dew points, which allow for easy removal of excess water vapor.

The type of desiccant material used by your air dryer can have a significant impact on performance. Instead of using silica gel, our dryers employ activated alumina or 13x molecular sieve desiccant beads to achieve the highest level moisture removal.

Nano's diverse line of air treatment products cover a wide range of applications and process requirements. From single tower to twin tower, modular, and heated and heatless desiccant dryers, we have a highly efficient dryer to fit almost any downstream application from an air compressor.

Call us to discover more about modular, heatless, welded, pneumatic, externally heated, compact, and blower purge dryers.

Toll Free: 1-888-226-8522


DCS Oil Cooler

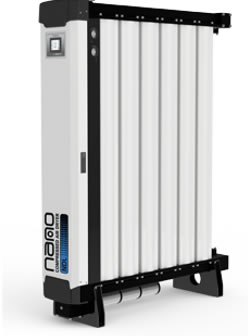

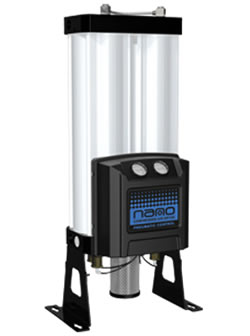

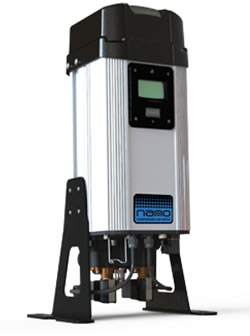

Nano Modular Desiccant Dryer:

Versitile, Modular design
Energy Efficient
3 - 177 SCFM at 100 PSIG

Great for Point-of-Use Applications



Low Life Cycle Costs



DCS Oil Cooler

Nano Pneumatic Desiccant Dryer:

Safe and Efficient Operation
Great for Locations with Limited Power
NEMA 7 Explosion-Proof Controls
100% Leak Tested
ISO 8573-1:2010, Class 2 Dirt and Class 2 Water Compliant



DCS Oil Cooler

Nano High Pressure Dryer:

Twin Tower Design
Perfect for High-Pressure Air Systems
Stainless Steel Construction
Designed for the Toughest Applications
40F Standard Dew Point (-4F and -67F Optional



DC-DCS Oil Coolers

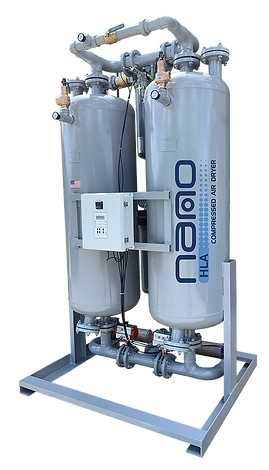

Nano Heatless Desiccant Dryer:

Twin Tower Design
-40F Dew Point (-94F Optional)
Low Pressure Drop
High Quality Stainless Steel Valves
Reliable and Steady Dew Point Performance



DC-DCS Oil Coolers

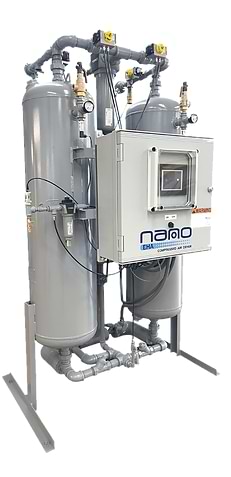

Nano Externally Heated Dryer:

Twin Tower Design
-40F Dew Point (-94F Optional)
Heavy-Duty Design and Materials
Optimized Purge Air Performance
Highly Versatile and High-Performing



Hydraulic Oil Cooler

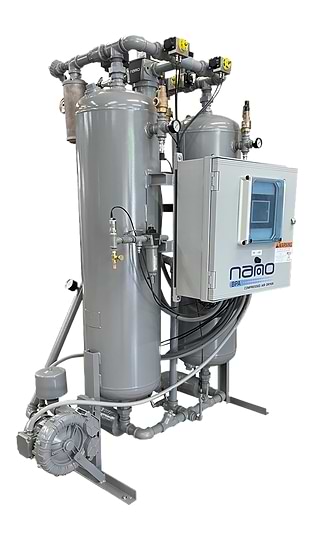

Nano Blower Purge Dryer:

Twin Tower Design
Combines Ambient Blower, Heater, and Dry Purge for Desiccant Regeneration
0-2% Purge Air Usage over 4 Hr. Cycle
Consistent -40F Dew Point Performance
  Zero Air Loss Operation with Dry Air Cooling Turned Off

Quotes, Sales & Ordering Information: Refrigerated Air Dryers, please contact us: 1-888-226-8522
